FOR OVER 75 YEARS!
Quality is our passion.
We have been dedicated to our customers
by meeting and exceeding, their
stainless steel tubing needs!
Why You Always Get More
When You Call United Industries
Stainless Steel
Sanitary / Pharmaceutical / BPE
Tubing
QS Certified
#0009870
Download
Sanitary Sell Sheet
Here

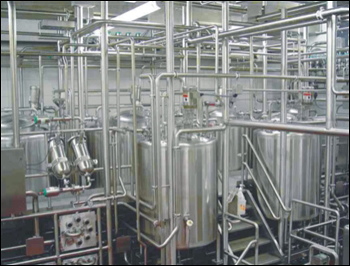

Wisconsin and the dairy
industry are synonymous and United
Industries has
been involved
since the beginning of the modern
sanitary and dairy
industry.
Both industry segments
require clean
and
polished tubing with strict material control and
identification.

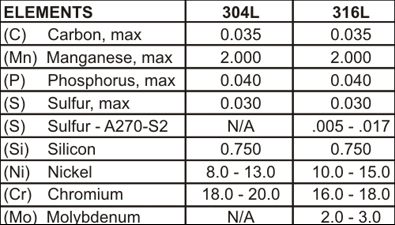

TYPES 304L & 316L
United
Industries has manufactured quality ASTM A270 tubing for
25+
years.
United
Industries' reputation for cleanliness and surface finish
of
welded stainless steel
tubing, combined with
quality
of
service have
made
United
Industries' tubing an
accepted
standard in the
sanitary,
dairy, food,
beverage and
pharmaceutical
industries.
Size
Range: 1/2" -
8"
Mechanical Tests
ASTM
A270 / A450 require reverse flatten, eddy current or
hydrostatic testing. In addition, United Industries
performs a
flare, flatten,
flange and a reverse bend
test.
Surface roughness is
measured
per ASME / ANSI
B46.1, which is
derived from (4) readings
taken at
cross sections
approximately 90
degrees
apart.
Finishes / Packaging
Sanitary
A270 (3A) TPV Certified - #1 BA, #3 ID - Only, #5 OD -
Only, #7 ID &
OD
Mechanical Polish = (240
grit ID, 180 grit
OD)
Pharmaceutical A270 -S2
ASME BPE
SF1 (Mechanical
Polish) 20Ra Max.
(0.5µm)
ID, 30Ra
Max. (0.8µm) OD
SF4 (Electro Polish)
15Ra Max. (0.4µm), 30Ra Max (0.8µm) OD
All mechanical
polished tubes are polished inside and out to QS
Standards that meet or exceed A270 3A, A270-S2, ASME
BPE.
All
material
is end capped and poly
sleeved. Tubes are
packaged in
tri-wall cardboard boxes with wood
ends.
Material
Certification is shipped with all tubing. Material
Certification is also available via:
www.unitedindustries.com.
Other
packaging available upon request.
Our Commitment
Solid and Stable
United Industries history, reputation, future and
mission is
to
manufacture all of our welded stainless steel
tubing to the standard of
excellence.
